Recording and Playing Macros

The following controls are available on the Macro Player for recording and playing macros.

Macro Player controls
	Icon	Description

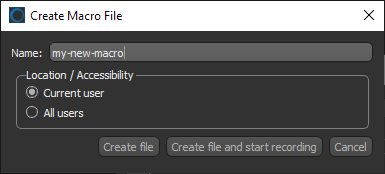

New Macro		Opens the Create Macro File dialog, shown below. You can choose a name for the new macro, a save location, and to either create the file or to create the file and start recording.
Import Macro		Lets you import a macro file to the current user macro folder.
View File		Opens the current macro file. Note Macro files are written in Python and can be viewed and edited in a simple text editor or with a developer application such as PyCharm.
Save As		Saves the current macro as a new file.
Save		Saves any changes you made to the current macro.
Reload		Reloads the selected macro. Note You can reload a macro to discard any changes you made while editing the macro in the Macro Player dialog. Reloading a macro will also apply any changes you made to the macro file externally. For example, in PyCharm.
Delete		Deletes the selected macro.
Record		Begins recording. Note The Record button changes to Pause as soon as you begin recording.
Pause		Pauses recording. Note The Pause button changes to Record as soon as you pause recording.
Play Single Step		Plays the macro step-by-step.
Play All		Plays the macro, either to the end or to point that a user input is required. If the Automatically select the only occurrence when there is a single element available option is checked, the macro will automatically insert the required object or element when needed if no additional options are available. If multiple elements are available, the macro will wait for the required user input.
Stop		Stops playback.

Recording Macros

You can record macros in the Macro Player dialog to automate frequently used commands or processes. You should note that while it is possible to record a macro for almost any action that applies to Dragonfly, some features may be disabled when you are recording. This is because some actions require considerable user input and are too difficult to automate.

If you want to share macros with other members of your team, you can send them your macro files. They can then add these files to their Python user or Python all users extension folders. You can also browse for and download macros in the Infinite Toolbox (see Infinite Toolbox).

How to Record a Macro

Make sure that all the objects — image data, regions of interest, meshes, and so on — that you plan to include in your macro are readily accessible in the workspace.
Choose Utilities > Macro Player on the menu bar.
The Macro Player dialog opens.
Click the New button.
The Create Macro File dialog appears.
Enter a name for your new macro in the Create Macro File dialog.
Note When naming or renaming a macro, you should use a unique name whenever possible. However, you should note that each macro is assigned a unique identifier (UID) and unique names are not required.
Choose an accessibility option for your macro — Current user or All users.
- Macros for the current user are saved to the AppData\Local\ORS\DragonflyXX\pythonUserExtensions\Macros folder on your computer.
- Macros for all users are saved to the ProgramData\ORS\DragonflyXX\pythonAllUsersExtensions\Macros folder on your computer.
Do one of the following:
- Click the Create file button. In this case you will then need to click the Record button to begin recording.
- Click the Create file and start recording button. If you select this option recording will be begin immediately.
Perform the steps you want to record for the macro. Dragonfly will automatically capture each of the steps.
Click the Stop button when you have completed all the steps that you want to record.
This stops recording and saves all of the completed steps.
You can edit specific steps (see Editing Macros), execute the macro (see Executing Macros), as well as play back the macro (see Playing Macros).

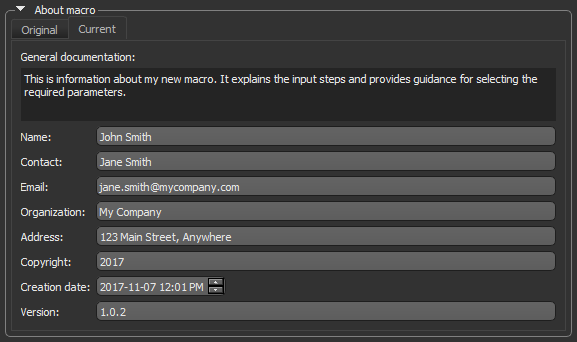

Expand the About macro box and then enter additional information about your macro in the Current tab, optional.
- You can add information about the macro, such as an explanation of the input steps and guidelines for selecting required parameters, in the General documentation field.
- You can update the author and contact information, as well as the copyright and date of creation.
- You can modify the version number in the Version text box.
Click the Save button if you made any changes to your macro after you stopped recording.

Editing Macros

Each step in a recorded macro includes its name or title and a brief description of the action to be executed. You can set steps to be executed automatically, to wait for user input, or to be skipped. You can also edit the parameters of each step in the Parameter editor.

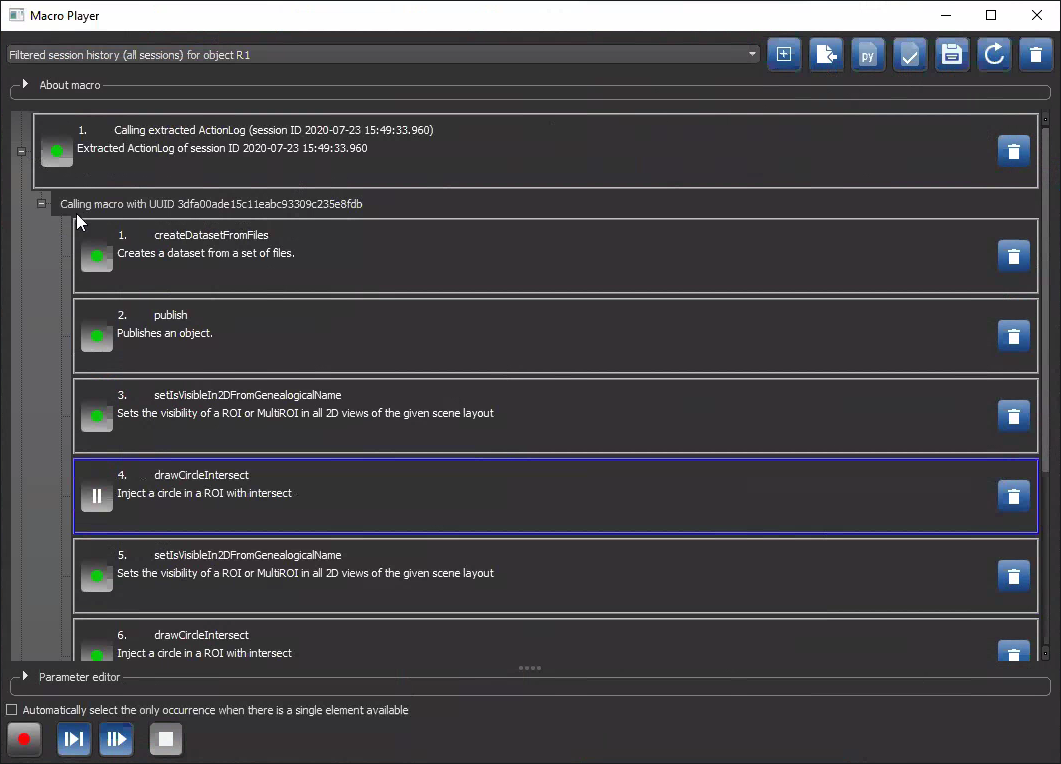

You should that the Macro Player features an expandable tree view that lets you dive-into macro blocks extracted from object histories (see Extracting Object Histories) and for macros that call other macros. As shown below, you can expand a block to view each individual step within it.

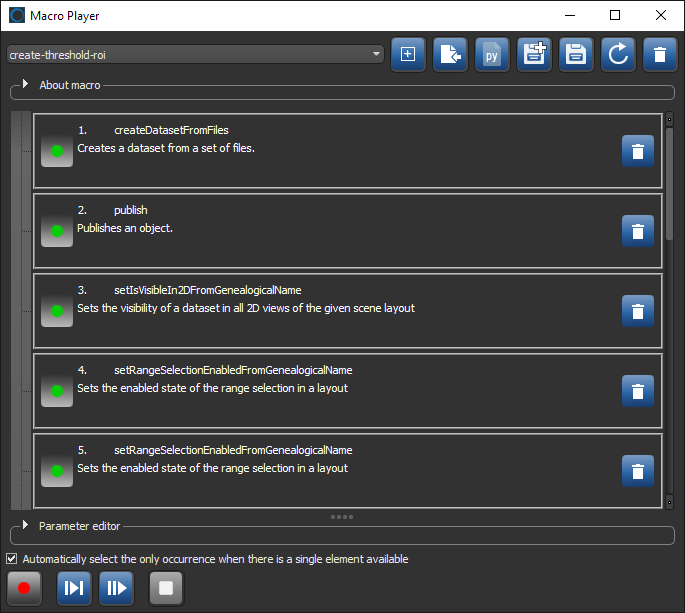

Macro Player dialog

You can also manually edit a macro in the source file. Click the View File

button to open the current macro file in another application. Macro files are written in Python and can be viewed and edited in a simple text editor or with a developer application such as PyCharm.

The following controls are available for editing the steps in a recorded macro.

Macro Player step controls
	Icon	Description
Execute		When a macro step is set to Execute, the step will be executed automatically.
Pause		When a macro step is set to Pause, the macro will stop at the paused step and wait for a user input.
Skip		When a macro step is set to Skip, the macro will skip the step and continue playback.
Delete		Deletes the selected macro step.

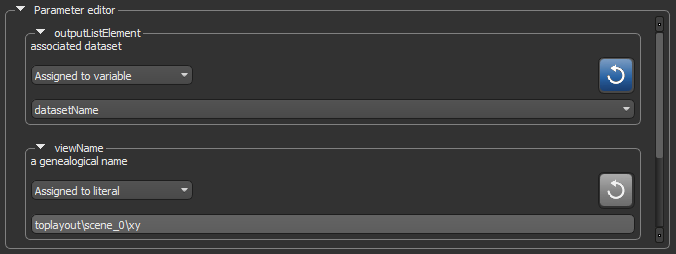

You can use the controls in the Parameter editor, shown below, to edit any step in a logged operation.

Parameter editor

Playing Macros

After you record a macro, you can play it back. Playing back a macro automatically runs all of the interface actions you recorded using a single action, unless a user input is required.

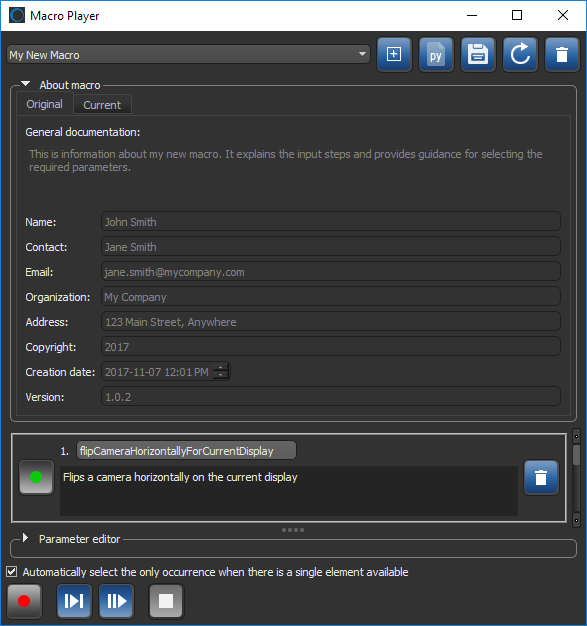

You can view information about a selected macro by expanding the About macro box, as shown below.

Executing Macros

After you record a macro, you can execute it from the Data Properties and Settings pop-up menu or from the View pop-up menu. Executing a macro automatically runs all of the interface actions you recorded using a single action, unless an input is required.

The shortcut for macros in the contextual menus only shows those for which the selection matches the first step requirements.

Configured Actions for Macros

A number of configured actions and keyboard shortcuts are available for the Macro Player and Macro Builder. The default settings for these actions are listed in the following table.

Default configured actions for macros
Action	Key	Mouse
Open the Macro Builder	-	-
Open the Macro Player	-	-

See Configurable Actions for information about modifying default actions.
